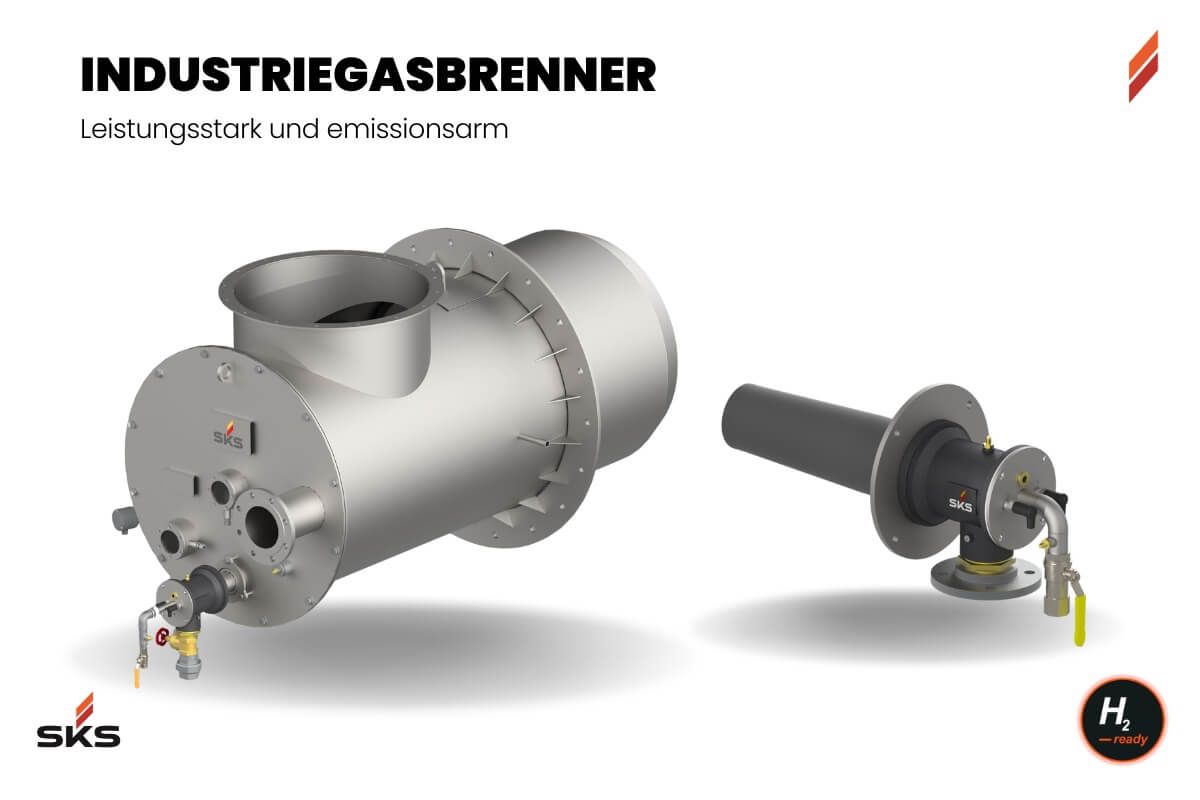

Industrial gas burners
These industrial gas burners are combustion devices operated with fuel gas with electrical high-voltage ignition and flame monitoring in two-electrode operation. In the area of the European Union, the safety requirements according to DIN-EN 746-2 apply. The burners are available without a flame tube (O) for installation in a burner block, and up to the IGB200 either with a ceramic tube (C) or, on request, with a steel tube (S).
| Burner type | rated capacity | Nominal output warm air mode | Gas connection | Air connection |
|---|---|---|---|---|
| IGB100 O | 320 kW | 200 kW | Rp 1 " | DN65 |
| IGB100 C | 320 kW | 200 kW | Rp 1 " | DN65 |
| IGB140 O | 500 kW | 325 kW | Rp. 1 1/2 " | DN80 |
| IGB140 C | 500 kW | 325 kW | Rp. 1 1/2 " | DN80 |
| IGB165 O | 650 kW | 425 kW | Rp. 1 1/2 " | DN100 |
| IGB165 C | 650 kW | 425 kW | Rp. 1 1/2 " | DN100 |
| IGB200 O | 1000 kW | 650 kW | Rp 2 " | DN150 |
| IGB200 C | 1000 kW | 650 kW | Rp 2 " | DN150 |
| IGB220 O | 1500 kW | 975 kW | Rp 2 " | DN150 |
| IGB300 O | 2500 kW | 1550 kW | DN65 | DN250 |
| IGB350 O | 3500 kW | 1950 kW | DN80 | DN300 |
| IGB400 O | 4250 kW | 2750 kW | DN80 | DN350 |
| IGB450 O | 5000 kW | 3250 kW | DN100 | DN400 |
| IGB500 O | 6500 kW | 4250 kW | DN125 | DN450 |
| IGB600 O | 9500 kW | 6000 kW | DN125 | DN500 |
| IGB750 O | 15000 kW | 9500 kW | DN150 | DN600 |
